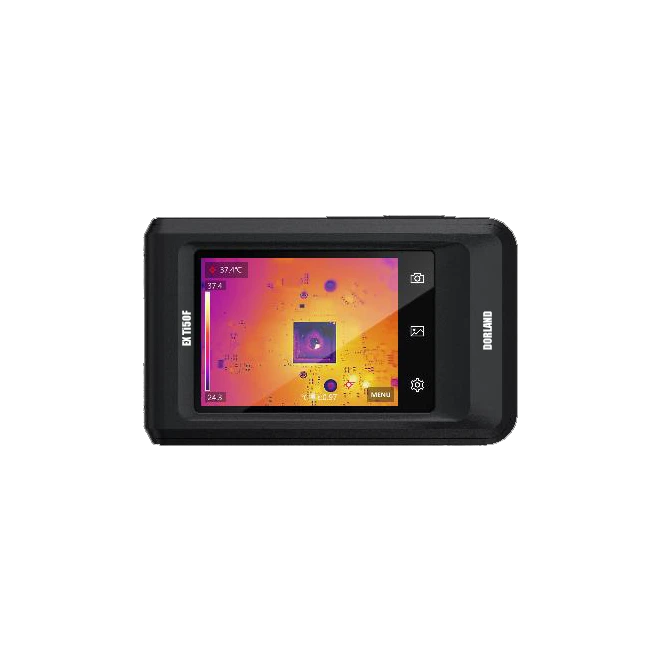

Intelligent Portable Intrinsically Safe Digital Camera Ex Ti50F - Dorland
Beijing Dorland System Control Technology Co., Ltd. has recently launched the intrinsically safe intelligent portable pocket infrared thermal imager EX Ti50F, which has a 120 * 90 high infrared resolution, a 640 * 480 high-definition 3.5-inch screen IPS display, and is clearly visible under strong light. In addition, it is also suitable for outdoor construction, pipeline inspection, etc., and can be used in conjunction with various applications such as OA office systems, inspection positioning systems, data collection systems, etc. Especially suitable for harsh environments with hazardous explosions, such as petroleum, chemical, pharmaceutical, oil depots, tank areas, and other hazardous areas with flammable and explosive gases, facilitating timely communication between users and production and scheduling.
5.0
like
Brand:
DORLAND
Model Name:
EX Ti50F
Delivery:
14 Days
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product parameters
| Brand | DORLAND |
| Model Name | EX Ti50F |
| Form Factor | Temperature measuring thermal imager |
| Explosion proof level | Ex ib IIC T4 Gb/Ex ib IIIC T130℃ Db |
| Protection level | IP54 |
| Certificate No. | SYEx24.0286X |
| Resolving power | 120*90 |
| Field of view angle | 50°*37°/0.5m |
| Like element size | 17μm |
| Range | -20 ℃ to 150 ℃/0 ℃ to 550 ℃ |
| Thermal sensitivity | ＜ 0.05 ℃ @+30 ℃/50mk |
| Visible light pixels | 2 million pixels |
| Display screen | 3.5 "640 * 480 pixels, touch screen |
| Image display mode | Infrared image, visible light image, picture in picture function, AUF automatic fusion |
| Palette | Iron Red, Rainbow, Grey White, White Grey, Blue Red, Hot Cold, Feather Red, Brown |
| Image frame rate | 50 Hz |
| Focusing method | No focusing |
| Storage | Built in 4GB |
| USB connection | USB type C, can connect to a computer |
| Battery | 2180mAh, 3.85VDC rechargeable lithium battery, available for 4 hours |
| Size | 80*52*18mm |
| Weight | 130g |
Download instructions
Download product information
product display
EX Ti50F Pro
EX Ti50F
