Product details of the intrinsically safe devices
Quick Overview
This uniquely designed Dorland intrinsically safe devices comes from our innovative designers. The product provides users with stable performance, long service life, etc. Beijing Dorland System Control Technology Co., Ltd. can supply samples and accept the trial order with small quantity.
Product Information
With a focus on quality, Dorland pays great attention to the details of intrinsically safe devices.
Product parameters
Brand | DORLAND |

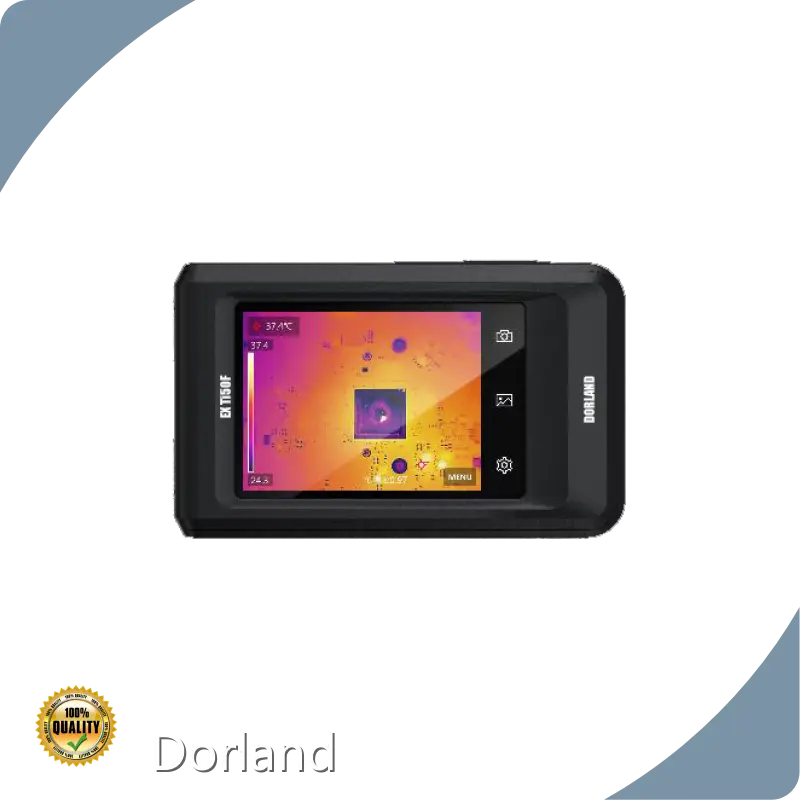

Model Name | EX Ti50F |
Form Factor | Temperature measuring thermal imager |
Explosion proof level | Ex ib IIC T4 Gb/Ex ib IIIC T130℃ Db |
Protection level | IP54 |
Certificate No. | SYEx24.0286X |
Resolving power | 120*90 |
Field of view angle | 50°*37°/0.5m |
Like element size | 17μm |
Range | -20 ℃ to 150 ℃/0 ℃ to 550 ℃ |
Thermal sensitivity | < 0.05 ℃ @+30 ℃/50mk |
Visible light pixels | 2 million pixels |
Display screen | 3.5 "640 * 480 pixels, touch screen |
Image display mode | Infrared image, visible light image, picture in picture function, AUF automatic fusion |
Palette | Iron Red, Rainbow, Grey White, White Grey, Blue Red, Hot Cold, Feather Red, Brown |
Image frame rate | 50 Hz |
Focusing method | No focusing |
Storage | Built in 4GB |
USB connection | USB type C, can connect to a computer |
Battery | 2180mAh, 3.85VDC rechargeable lithium battery, available for 4 hours |
Size | 80*52*18mm |
Weight | 130g |
Download instructions
Download product information
product display
Company Introduction
Beijing Dorland System Control Technology Co., Ltd. is a manufacturer of intrinsically safe devices established many years ago. We have extensive and rich experience in this industry. Having been qualified with certificated quality assurance, our finest intrinsically safe devices has got more and more recognition from customers. Beijing Dorland System Control Technology Co., Ltd. can supply the very best choice depending on customers' needs. Contact!
We have been providing high quality intrinsically safe devices for a long time. We look forward to working with you.
