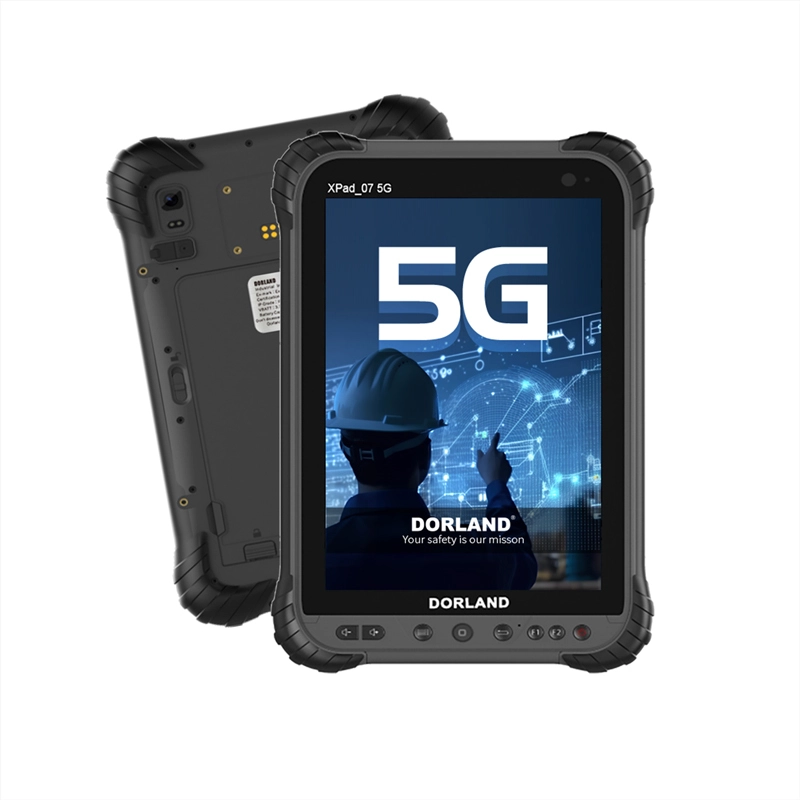

Intrinsically Safe Industrial Explosion-proof Pad XPad_07 5G

Developed by Beijing Dorland System Control Technology Co., LTD., the industrial explosion-proof Pad XPad_07 5G adopted advanced technology with intrinsically safe circuit, 8.0” touch screen and 5 Megapixel (Front Camera) 13 Megapixel (Rear Camera with Auto Focus) camera. Its waterproof and dustproof performance can meet the IP67 standards; In addition, built-in GALILEO /GLONASS /BEIDOU /GPS positioning system, elevation measurement, compass, and other functions suitable for outdoor construction and pipeline inspection. It can also cooperate with OA office system, checking positioning system and data acquisition system etc. Especially it is used in dangerous environment of the explosion, such as petroleum, chemical, pharmaceutical, oil depot, tank farm as well as the dangerous sites with combustible and explosive gas. It is convenient for users to dispatch communicate timely.

    oops...!

    no product data.

    Go to homepage

    Product parameters

    Protection grade

    IP67

    Explosive-proof grade

    Ex ib IIC T4 Gb/ Ex ib IIIC T130℃ Db

    Certification No.

    CCRI 23.2951X

    Software platform

    Android 12.0

    Touch Lens

    Capacitive Touch screen

    LCD Parameter

    TFT,8inch, 1280*800/1920*1200 resolution
    Touchable hd large screen, visible with strong light

    CPU

    Qualcomm Snapdragon SM4350
    2*Kryo 460 Gold(A76) 2.0GHz + 6*Kryo 460 Silver(A55) 1.8GHz

    Camera

    1300M AF,5M (front)  rear camera with flash light

    Memory

    6/8GB RAM + 128/256GB ROM

    Storage Card

    T-Flash

    Network

    GSM: 850/900/1800/1900 EVDO: BC0
    WCDMA: B1/B2/B5/B8 TD-SCDMA: B34/B39
    TDD-LTE: B34/B38/B39/B40/B41
    FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B12/B20/B28
    5G NR:N1/N3/N28/N41/N78/N79

    Battery Capacity

    8000mAh

    Dimensions

    235*146*13mm

    Weight

    598g

    Bluetooth

    BT5.1

    WiFi

    Wifi6-Ready, 802.11ac, a/b/g/n, Frequency 2.4GHz/5GHz

    NFC

    Yes

    G-Sensor

    Yes

    Gyroscope

    Yes

    Light Sensor

    Yes

    E-compass

    Yes

    GPS

    uBlox GPS GALILEO/GLONASS/BEIDOU/GPS
